What is the maximum pressure that Monel steel pipe can withstand?

Hey there! As a supplier of Monel steel pipes, I often get asked about the maximum pressure these pipes can withstand. It's a super important question, especially for industries where high - pressure applications are the norm. So, let's dive right in and explore this topic.

First off, let's understand what Monel steel is. Monel is a group of nickel - copper alloys that are known for their excellent corrosion resistance, high strength, and good ductility. These properties make Monel steel pipes a top choice for a wide range of applications, from chemical processing plants to marine environments.

The maximum pressure a Monel steel pipe can handle depends on several factors. One of the most significant factors is the pipe's wall thickness. A thicker - walled pipe can generally withstand higher pressures than a thinner - walled one. This is because the extra material provides more resistance to the internal pressure trying to push the pipe walls apart.

Another crucial factor is the diameter of the pipe. Smaller - diameter pipes can usually handle higher pressures compared to larger - diameter ones. Think of it like a straw. A thin straw can hold more pressure inside it before it bursts than a big, wide one.

The grade of Monel also plays a vital role. Different grades of Monel have different mechanical properties, which directly affect their pressure - bearing capacity. For example, Monel 400 is one of the most common grades. It has a good balance of strength and corrosion resistance. Monel K - 500, on the other hand, is heat - treatable and offers even higher strength, which means it can potentially withstand greater pressures.

To calculate the maximum pressure a Monel steel pipe can withstand, we can use the Barlow's formula. This formula is widely used in the industry and is given by:

P = (2 * S * t) / (D * SF)

Where:
P is the internal pressure,
S is the allowable stress of the material,
t is the wall thickness of the pipe,
D is the outside diameter of the pipe,
SF is the safety factor.

The allowable stress (S) is determined by the material properties of the specific Monel grade. It takes into account factors like the yield strength and the ultimate tensile strength of the alloy. The safety factor (SF) is used to ensure that the pipe can operate safely under normal and even some abnormal conditions. A typical safety factor for most applications ranges from 1.5 to 3.

Let's take an example. Suppose we have a Monel 400 pipe with an outside diameter (D) of 2 inches, a wall thickness (t) of 0.1 inches, and an allowable stress (S) of 20,000 psi. If we use a safety factor (SF) of 2, we can calculate the maximum pressure as follows:

P = (2 * 20000 * 0.1) / (2 * 2)
P = 1000 psi

This means that under these conditions, the Monel 400 pipe can safely withstand an internal pressure of up to 1000 psi.

In real - world applications, the actual maximum pressure a Monel steel pipe can handle might be different due to other factors. For instance, the temperature of the fluid flowing through the pipe can have a significant impact. At higher temperatures, the strength of the Monel alloy can decrease, which in turn reduces the pipe's pressure - bearing capacity.

Also, the type of fluid or gas inside the pipe matters. Some chemicals can react with the Monel surface, causing corrosion over time. This corrosion can weaken the pipe walls and lower the maximum pressure it can withstand.

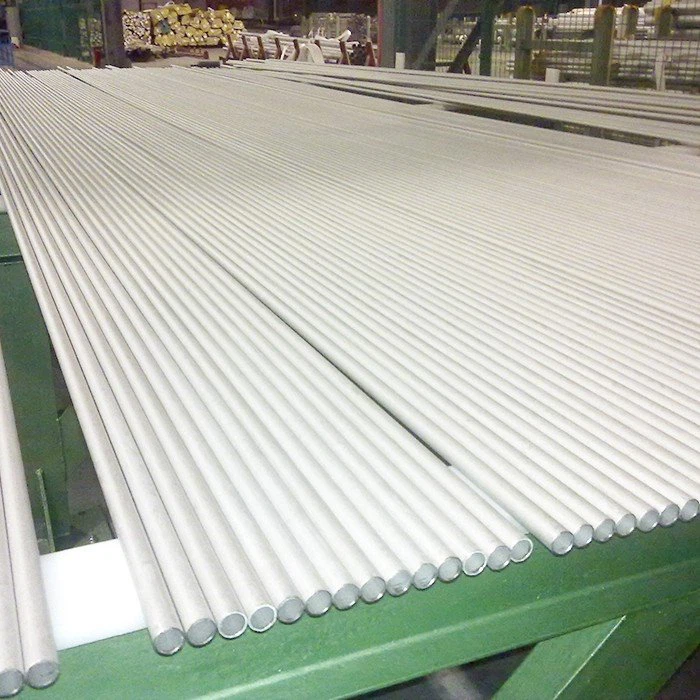

Now, if you're in the market for high - quality Monel steel pipes, we've got you covered. We offer a wide range of Monel pipes in different grades, diameters, and wall thicknesses to meet your specific needs. Whether you're working on a Stainless Nickel Alloy Piping project, need a Nickel Base Steel Pipe, or are looking for a Nickel Alloy Pipe, we can provide you with the right solution.

Our team of experts is always ready to help you select the best pipe for your application. We can assist you in calculating the maximum pressure your pipe needs to withstand and recommend the appropriate grade and dimensions.

If you're interested in learning more or making a purchase, don't hesitate to reach out. We're here to make sure you get the best Monel steel pipes at competitive prices.

In conclusion, the maximum pressure a Monel steel pipe can withstand is a complex function of its wall thickness, diameter, grade, temperature, and the nature of the fluid or gas inside it. By understanding these factors and using proper calculations, you can ensure that your Monel pipes operate safely and efficiently in your high - pressure applications.

References

• ASME Boiler and Pressure Vessel Code
• Material property handbooks for Monel alloys
